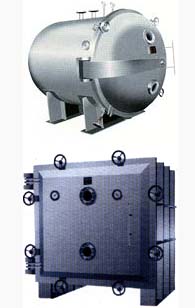

Vacuum drying material is in the vacuum drying conditions for drying. It is the use of vacuum extraction dehumidifier for the indoor work to form a vacuum, accelerated the drying rate.

　　Apply to medical, chemical, food, electronics, medicine and other industries thermosensitive material drying.

　　 In the lower temperature the higher drying rate, access to adequate calories;
　　 Can be low-temperature drying or heat-sensitive materials drying;
　　 Drying can take containing solvent and solvent recycling of materials;
　　 In dry before disinfection and drying process any impure had no mixed;
　　 For the parade is dry static vacuum dryer, the dry material does not damage the body.

Name specifications	YZG-600	YZG-1000	YZG-1400	FZG-15
Size oven(mm)	600×976	1000×1527	1400×2054	1500×1400×1220
Size outside the oven(mm)	1135×810 ×1020	1693×1190 ×1500	2386×1675 ×1920	1513×1924 ×2060
Bake-rise	4	6	8	8
Interlayer distance (mm)	81	102	102	122
Bake disk size(mm)	310×600×45	460×640×45	460×640×45	460×640×45
Drying books	4	12	32	32
Bake-pressure pipe use (Mpa)	≤0.784(8Kg/cm²)	≤0.784	≤0.784	≤0.784
Bake uses the temperature(ºC)	-35～150	-35～150	-35～150	-35～150
Box empty vacuum(Mpa)	-0.1	-0.1	-0.1	-0.1
In-0.1MPa, the heating temperature of 110 º C, water gasification rate (kg / m². h)	7.2	7.2	7.2	7.2
With the condenser, vacuum models, power (kw)	2X-15A   2.2kw	2X-30A   3kw	2X-70A 5.5kw	2X-70A   5.5kw
Not condensers, vacuum models, power (kw)	JZJS-70   7kw	JZJS-70   7kw	JZJS-70   7kw	JZJS-70   7kw
Weight oven (Kg)	250	800	1400	2100
The above data, for reference purposes only, if there are special requirements for the plant design and consulting services.

 Ordering notes also true price lists vacuum dryer prices confined to a vacuum dryer itself, not even the annex. 1, the same type of vacuum dryer respectively - steam, hot water type, electric heating-three forms of heating methods. For example, to increase the drying capacity. It would be appropriate to increase bake-layers, I requested in a timely manner to plants. 2, the use of insert vacuum drying system involved in the annex, I can plant and to provide users with the installation, Please note when ordering. 3, the plant could provide a vacuum drying system for the special requirements of the design, manufacture and installation. 4, the plant equipment to three users to exercise quality guarantee, all accessories, long-term locations reassure users.
